Rolling with the ‘Tides: Elucidating the Role of Peptides and Oligonucleotides in the Biopharmaceutical Industry


STOCK.ADOBE.COM

In earlier issues of BPI we published a few “Elucidation” closers that we called “Defining Moments.” Since then, we have tried to distinguish key confusable terms from one another. Those presented (and sometimes “elucidated”) have been analytical and bioanalytical, spectroscopy and spectrometry, and biosimilars and biobetters. They are just a few of the many confusable terms in the biopharmaceutical industry. For example, when someone says “drug delivery,” a formulator will think of a syringe or transdermal patch, but a logistics expert will think of packaging or a truck.

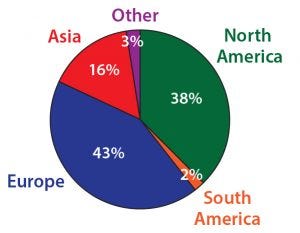

Figure 1: Most survey participants reside and work in Europe or North America.

The term biopharmaceutical itself was coined more to distinguish that category of recombinant large biomolecules from what was then the more familiar “classical” or small-molecule drugs — those chemically synthesized drug substances that can be delivered mainly through oral formulations. In fact, the word biopharmaceutical was coined to describe an industry in the making even before there was much of an industry in the first place.

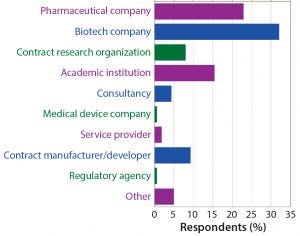

Figure 2: What type of organization best describes your employer? More than half of survey participants work for either a biotech or pharmaceutical company, and nearly 20% work for a contract organization (research or manufacturing).

Even back in the early 1990s (before BPI), the term was used to define a revolutionary manufacturing paradigm before that truly was yet “a thing.” At that point, as the editors of BioPharm, we narrowed in scope the application of the term to exclude other biological entities (biologics) used both as raw materials in drug development/manufacturing and more directly as active pharmaceutical ingredients (APIs) themselves: e.g., hormones, blood products, and synthesizable peptides. Insulin was the smallest actual biopharmaceutical that first magazine focused on the industry dealt with. Everything else was considered to be a “pharmaceutical” and thus the purvue of Pharmaceutical Technology instead.

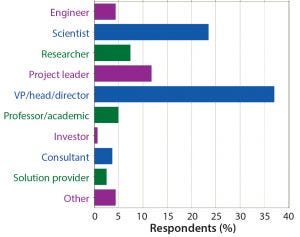

Figure 3: Which of the following best describes your job function? The top three job functions were vice president/director, scientist, and project leader.

Definitions evolve. As the industry BPI covers has grown and its proponents have become more adept at manufacturing biologics at large scale, some applied definitions may include or exclude entire categories of products and processes depending (often) on marketing positions from company to company. Author Ron Rader (BioPlan Associates) presented this conundrum in a two-article series for BPI back in 2007, a portion of which is worth citing herein. He was writing about industry terminology as he prepared to distinguish biosimilars from generics (and biogenerics):

Biopharmaceutical terminology has faced a certain degree of chaos and anarchy for years. In fact, the word biopharmaceutical itself continues to be subject to a wide variety of views, paradigms, and definitions, whether in relation to products, technologies, companies, or the industry. . . . The predominant definition (the “broad biotech” view) within the US industry is that biopharmaceutical refers to pharmaceuticals that are inherently biological in nature due to their manufacture using live organisms (biotechnology). The “new biotechnology” view, more common in Europe, restricts the term to genetically engineered products (recombinant proteins and monoclonal antibodies).

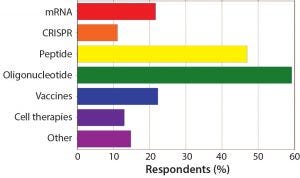

Figure 4: What types of therapeutics does your company focus on?

The influence of business models and marketing goals on this definition also factors into another explanation:

Biopharmaceuticals are medical drugs produced using biotechnology. They are proteins (including antibodies), nucleic acids (DNA, RNA, or antisense oligonucleotides) used for therapeutic or in vivo diagnostic purposes, and are produced by means other than direct extraction from a native (nonengineered) biological source.

The first such substance approved for therapeutic use was recombinant human insulin (rHI, trade name Humulin), which was developed by Genentech and then marketed by Eli Lily beginning in 1982. Since then, the large majority of drug products rightly known as biopharmaceuticals have API drug substances that are derived from life forms. Few scientists or other experts in the industry regard small-molecule drugs to be “biopharmaceutical” in nature. However, members of the press and the business and financial community often extend the definition to include drug substances that are not created through any form of biotechnology — but that may have involved it somehow in their discovery processes. The term has become an oft-used buzzword for a variety of different companies producing new and apparently “high-tech” pharmaceutical products. (2).

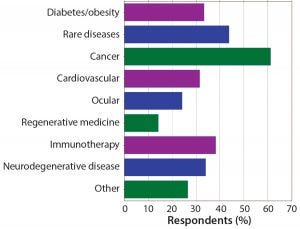

Figure 5: Which indications does your company focus on? Targeted cancer therapies continue to be the dominant areas of research and development. Rare diseases and immunotherapies also are strong areas of focus for companies working in peptides and oligonucleotides.

In short, if you depend only on Internet searches for such definitions, you will find many confusing crossovers muddying the waters. In fact, with work increasing toward commercializing regenerative medicines, explorations into combination therapies, creation of companion diagnostics, production of antibody–drug conjugates and recombinant vaccines, what one person or company considers to be “pharma” and another company “bio” often appear to encroach ever more into one another’s “territories.”

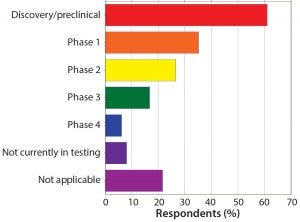

Figure 6: Your peptide/oligonucleotide projects are in what development phase? More campaigns are in early trial or discovery/ preclinical stages than in all other phases combined.

In keeping with our process-development focus, BPI’s definition has from the start rested in methods of manufacturing proteins, peptides, and nucleic acids through bioprocessing — it’s right there in the name of the publication. Note that more peptides and oligonucleotides are synthesized than expressed by recombinant cells (3). And of course, when we hear talk about the potential for “cell-free protein synthesis,” we can’t help being a bit skeptical. But BPI will cross that bridge when it appears in the road before us. For now, all signs suggest that cell culture will remain the center of the BPI universe.

Drug-Delivery Technologies

What is the most exciting delivery advancement or technology you have seen? This was an open-ended question. Standout answers included

• Cationic lipids

• Conjugation chemistry (e.g., of oligos to internalized ligands, GalNac; peptides and Alnylam’s CNS delivery; siRNA–ASO conjugates for delivery to specific cell populations)

• Delivery of naked siRNA

• Enantioenriched/enantiopure antisense oligonucleotides (ASOs)

• Implants

• Ligands for receptor-mediated endocytosis

• Liver targeting (“expansion to other organs would provide great potential”)

• Microporation

• Modified amidites that contribute to increased stability and longer half lives in vivo

• Nanotechnology (especially lipid/polymer nanoparticles, LNPs, and DNA nanostructures, Nanocarrier technology, DNA origami)

• Neuronal delivery

• Oral, nasal, sublingual, and inhalation delivery of peptides

• Ultrasound for targeted delivery

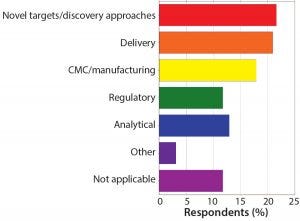

Figure 7: What is the biggest challenge you are currently facing in novel therapeutics?

Changing Times and ‘Tides
We are revisiting these definitions, even so, because BPI is once again looking into a topic that’s been peripheral to our interest since our 2003 founding: the relationship of our KNect365 colleagues’ “TIDES: Oligonucleotide and Peptide Therapeutics” conference series to BPI’s interests. The data presented herein come from a report published last month by the conference organizers based on a survey of their attendees and editorially

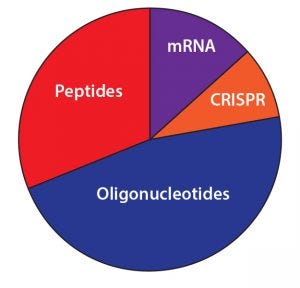

Figure 8: Which product modality has the most opportunity for commercial success and growth?

focused on their specific interests (see the “Oligo and Peptide Therapeutics” box). As a market survey, it should be of interest to many BPI readers. As one editorial advisor told us, “Oligos and peptides are still cornerstone tools to the larger biotherapeutic market. As the therapeutic understanding has continued to improve, the potential for them to consistently become stand-alone has continued to climb as well.”

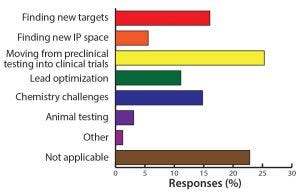

Figure 9: What is your biggest challenge in discovery/preclinical? The move from preclinical to clinical remains one of the major obstacles in oligonucleotide and peptide development.

From BPI’s perspective, nucleotides and peptides can be synthesized as drug substances and have limited use in biopharmaceutical development — so we have not dealt with them much in our pages. But they are biomolecules in themselves even if they aren’t typically produced in fermentors/bioreactors. Because of our bioprocess focus, we confine our interest to products that are not synthesized, but rather made by living organisms.

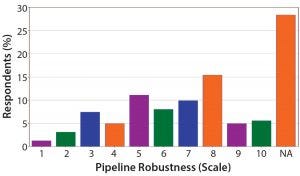

Figure 10: On a scale of 1–10 how robust is your current oligonucleotide and/or peptide pipeline?

So the TIDES conference presentations generally are peripheral to BPI as a publication, even though many of the presenters come from companies with familiar names to us: e.g., AstraZeneca, Biogen, GlaxoSmithKline, Janssen, and Roche. So the audiences are intrinsically related, even if they don’t often find common ground.

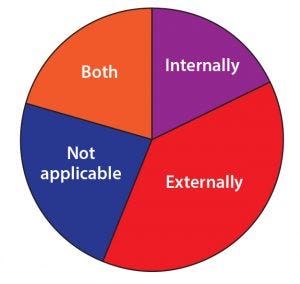

Figure 11: Does your company manufacture internally or externally (through a CDMO or partner)?

Peptides and nucleotides are biomolecules, and they face similar development and manufacturing issues as drug products to those of proteins (delivery challenges, stability, and so on). Even if their production and downstream processing are arguably simpler, they do require similar analytics and characterization methodologies. That is, ’tide product developers tend to work in biochemistry rather than the organic chemistry of their classical small-molecule counterparts.

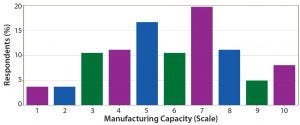

Figure 12: On a scale of 1–10, how well equipped is current manufacturing capacity to satisfy demand in the industry for oligonucleotides/peptides?

Our colleague Michael Keenan (organizer of the TIDES event) says, “There are people thinking about bioprocesses and chemistry, manufacturing, and controls (CMC) for these molecules. Some people may work only on biologics; some people may work only on oligos or peptides. Some people may work on both types of molecules.” And therein lies the potential overlap between the BPI and TIDES audiences: extension of BPI’s coverage, potentially, to include bioprocessing, CMC, and manufacturing of oligos, peptides, mRNAs, and other new modalities.

Regulatory Affairs

If you could ask your regulatory authority one question anonymously, what would that be? This was an open-ended question. Here are some standout responses:

• Can non-GMP plasmids be used for GMP manufacture of RNA?

• Can we significantly increase the yield and reduce purification requirements for off-sequence oligonucleotides (and peptides) if we know those sequences to be either similarly effective or at least not harmful to patients?

• Can you streamline the regulatory burdens for personalized medicine (to speed delivery to patients)?

• Could you develop a regulatory framework for improving drugs once they have been approved — a pathway to biobetter drugs that is not as costly as developing a entirely new drug?

• Does a preclinical toxicology program need to be completed exclusively in pediatric-equivalent aged animals to support firstin-pediatric clinical trials?

• Guidelines for peptide-therapeutic development are confusing, sometimes overlapping with small molecules and other times with biologics. Why don’t regulatory agencies come out with dedicated guidelines for peptides and oligonucleotides?

• Is it necessary to develop and validate methods to measure an analyte that has high potential for instability in vivo (e.g., unprotected mRNA drugs degraded by blood nucleases)?

• Please create a system to inspect and approve oligonucleotide and peptide backbones of known safety for on-the-spot synthesis, analysis, and administration at major medical centers for orphan disease patients on a compassionate use basis.

• Science is opening up previously unimaginable therapeutic possibilities, but will health-insurance systems ever be able to afford these for most patients?

• What analytical procedures are excessive for determining product quality? What techniques are mandatory for biophysical characterization of a ‘tide therapeutic?

• What is the agency view on the need for GMP for oligos used as reagents, but not therapies in themselves (e.g., for CRISPR gene editing)?

• What is the scientific basis for requiring molecule-specific validation of compendial analytical tests when multiple molecules of a class have been shown to not interfere with the analytical test? What would be required to enable use of platform arguments within and/or across classes of oligonucleotides?

• Would it be possible to generate standard procedures for immunogenicity testing?

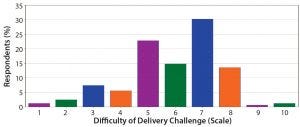

Figure 13: On a scale of 1–10, how difficult do you think the delivery challenge for novel therapeutics will be to overcome? Most respondents indicated such challenges will be somewhat difficult. With most projects still in early phases of development, respondents remain optimistic that those challenges will be addressed.

BPI Wonders . . . Some of these questions were addressed in the survey reported on in the graphic elements of this report. Others are more exclusive to a BPI perspective — and we would love to hear your thoughts!

  • Why is there so much excitement around the development of mRNA therapeutics and others involving clustered regularly interspaced short palindromic repeats (CRISPR) technology when there are so many other drug modalities such as oligonucleotides and peptides in development already? Have mRNA and CRISPR caught the collective attention of the industry because they are delivering results in ways that we thought oligos and peptides would?

  • What other new, emerging drug modalities will become important in the next three to five years? What manufacturing hurdles need to be overcome before they can be real therapies? Gene therapies finally are beginning to deliver on their promises. What do you expect to see in the next three to five years in that industry sector?

  • What key trends in the oligonucleotide market will make a big impact in the next three to five years? Is the industry investing adequately into the exploration and testing required to develop this technology? In a risk-averse industry, what might it take for oligos to deliver in the same way monoclonal antibodies (MAbs) have for the past three decades?

  • What key advances are driving growth in peptide therapeutic development and new peptide modalities?

  • What are the biggest obstacles to solving the “delivery challenge” of oligonucleotides, peptides, and other emerging drug modalities? Stability of course is a huge issue: protecting a therapeutic so that it can be effective in vivo. What other challenges are being addressed at the interfaces of these different industry segments?

Oligos and Peptides, by Dan Stanton, Editor, BioProcess Insider

The oligonucleotide therapeutic market could be viewed as having suffered a false start. Some researchers and other interested parties jumped on the potential of antisense oligonucleotides to silence specific genes as far back as the 1980s, when a number of companies invested heavily in the field and commenced hundreds of clinical trials. However, the unexpected complexity of oligonucleotide pharmacology dampened that early enthusiasm. [See Lynn Frick’s article in this issue for a discussion of the “valley of death.”]

Although the US Food and Drug Administration (FDA) approved in 1998 the first gene-silencing antisense therapy — Vitravene (fomivirsen) from Isis Pharmaceuticals (now known as Ionis Pharmaceuticals) and Novartis — the “major breakthrough” in harnessing genetic information to make new drugs has somewhat stalled. Two decades on, that product is no longer available, and only a handful of other oligonucleotides have beeb approved. Most have demonstrated little if any commercial success, although Biogen’s spinal muscular atrophy (SMA) treatment Spinraza (nusinersen) has bucked the tide. Approved in December 2016, the drug costs patients around US$750,000 for their first year of therapy (dropping to about $375,000/year afterward) and pulled in $884 million for Biogen in its first full year of sales. In January 2018, Biogen’s chief executive officer touted that as “one of the most successful rare-disease launches of all time, bringing new hope to patients and their families.”

The potential of antisense oligonucleotides is reflected in these survey results. Nearly half (47%) of respondents said that these products hold the most opportunity for commercial success and growth of any ‘tides. Only 14% said the same about mRNA therapeutics, and only 9% currently view CRISPR as commercially lucrative despite its disproportionate media attention — and despite the relatively few ‘tides that have made it to later-phase development. Nearly two-thirds (61%) of respondents have peptide and oligonucleotide candidates in the preclinical phase, and over a third (35%) have potential therapies in phase 1. Only 17% have a peptide or oligonucleotide in phase 3, however, and just 6% claim to have a commercial ‘tide on the market.

Manufacturing Like with other biopharmaceutical products, ‘tide program sponsors rely on contract development and manufacturing organizations (CDMOs) to develop and make both clinical and commercial products. Only 18% of survey respondents said all their manufacturing activity was kept internal.

Fiona Barry, editor at GlobalData’s PharmaSource is not surprised: “The contract services database from PharmSource — a GlobalData product — shows some industry outsourcing of oligonucleotide manufacture,” she said. Biogen/Ionis, for example, uses Patheon (now owned by Thermo Fisher) and Vetter to manufacture the Sprinraza finished-dose format and PCI Pharma Services as a contract packager. Barry added that service companies are increasing their capabilities to deal with the number of oligonucleotides entering the clinic.

Earlier this year, WuXi AppTec’s active pharmaceutical ingredient (API) manufacturing subsidiary, STA Pharmaceutical, announced that it will produce clinical-trial supplies of unnamed oligonucleotides for Regulus Therapeutics. Those supplies will come from STA’s newly opened site in Changzhou, China. Meanwhile, CordenPharma recently has invested in oligonucleotide manufacturing capabilities through expansion of its API facility in Boulder, CO. And in 2016, Agilent Technologies constructed a $120 million facility in Weld County, CO to more than double its own commercial manufacturing capacity for nucleic acid APIs.

Reference 1 KNect365 Life Sciences. Oligo and Peptide Therapeutics 2018: State of the Industry Report; https://knect365.com/next-generation-therapeutics/article/87366c05-773e-462a-8bc7-c6c444a82539/tides-state-of-the-industry-survey-report-2018.

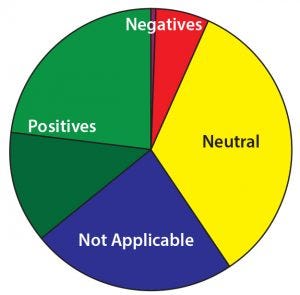

Figure 14: What impact have regulatory agencies had on your company’s success in the field?

The State of the Industry
The oligonucleotide and peptide therapeutics industry is at an interesting stage, with both opportunities and challenges related to therapeutic discovery, clinical trials, manufacturing, drug delivery, regulations, and business acquisitions. The survey we report on here by KNect365 Life Sciences was one of the biggest surveys of its kind across professionals from pharmaceutical and biotechnology companies, service providers, contract development and manufacturing organizations (CDMOs), academia, and regulators around the world. Based on 162 focused responses, this report reveals unique insights into how industry insiders view the state of oligos and peptides in 2018: the hottest potential opportunities, the biggest challenges, and how companies are tackling both.

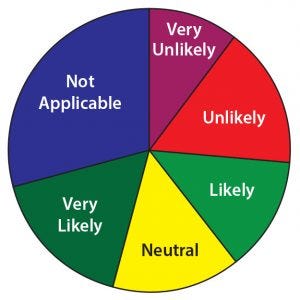

Figure 15: In the next two years how likely is it that your company will submit a marketing application for a peptide or oligonucleotide product currently in your pipeline?

To introduce the report, Dan Stanton, editor of BioProcess Insider, explores some key takeaways for the industry in the “Oligos and Peptides” box. As you peruse the graphics presented here, keep in mind that BPI wants to know how these topics fit into your work and whether you feel that we should address them more specifically in acquired manuscripts. Additional questions in the “BPI Wonders” box might stimulate some trains of thought.

If you’d like to add your insights to these topics, either by email or in manuscript form, please contact editor in chief Anne Montgomery at [email protected].

Dealmaking in 2017-2018

What were the biggest deals (partnership or acquisition) in 2017 and 2018? This was an open-ended question. The most-cited deals were those between • Bayer and Monsanto • Gilead Sciences and Kite Pharma • Ionis Pharmaceuticals and Biogen • Johnson & Johnson and Acetelion • Juno Therapeutics and Celgene Corporation • Novartis and AveXis • Shire and Takeda Pharmaceutical.


STOCK.ADOBE.COM

References
1 Rader RA. What Is a Generic Biopharmaceutical? Biogeneric? Follow-On Protein? Biosimilar? Follow-On Biologic? Part 1: Introduction and Basic Paradigms. BioProcess Int. 5(3) 2007: 28–38; https://bioprocessintl.com/wp-content/uploads/2014/05/070305ar04_77255a.pdf.

2 What Is Biopharmaceutical? Bioprocess Online https://www.bioprocessonline.com/doc/what-is-biopharmaceutical-0001.

3 Hu G. PEGylating Peptides (and Proteins). BioProcess Int. November 2010 (Special Report); https://bioprocessintl.com/wp-content/uploads/2014/05/BPI_A_100810AR05_O_109686a.pdf.

Corresponding author S. Anne Montgomery is cofounder and editor in chief of BioProcess International, [email protected]. Dan Stanton is editor of BioProcess Insider. Cheryl Scott is cofounder and senior technical editor, and MaribelRios is managing editor of BioProcess International.
